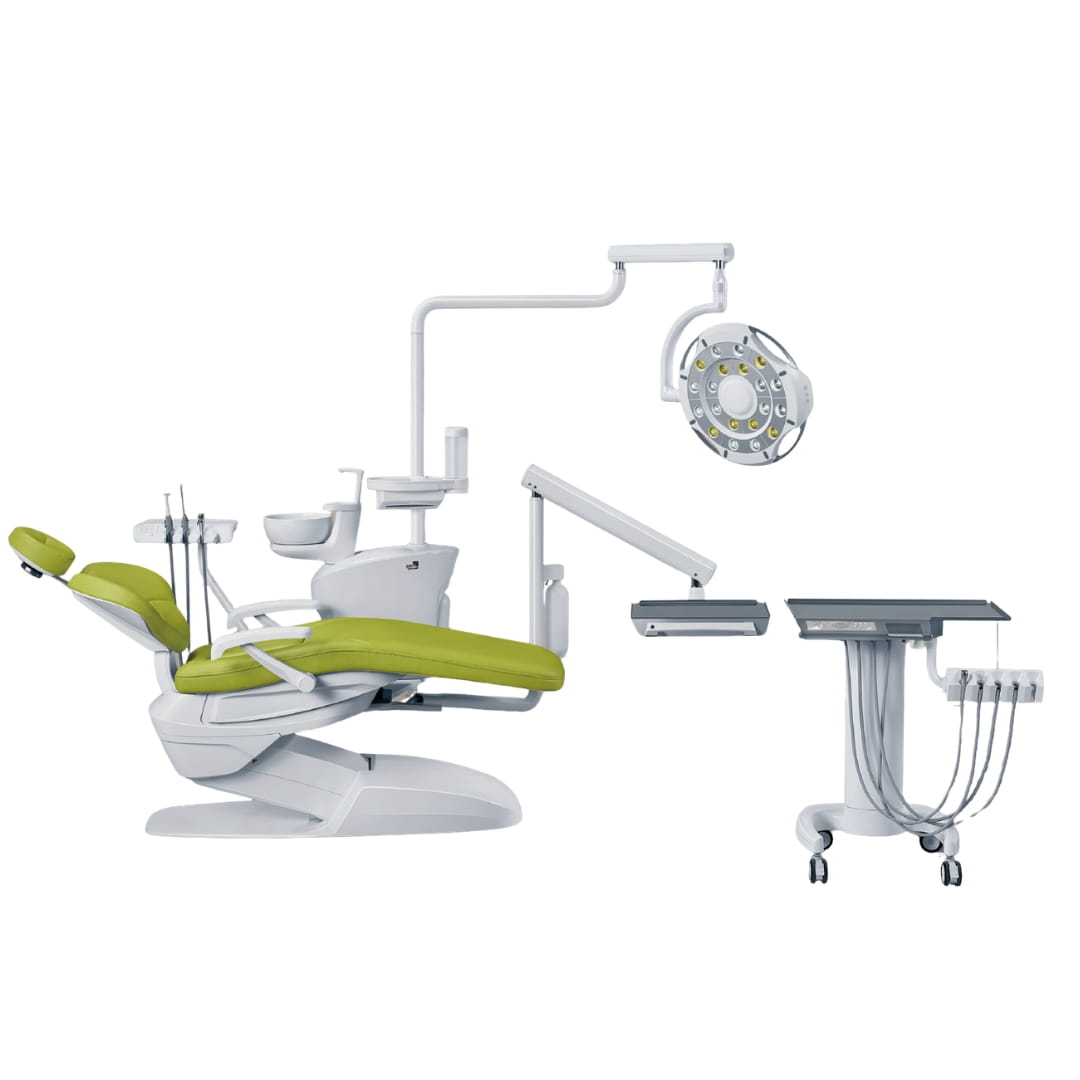

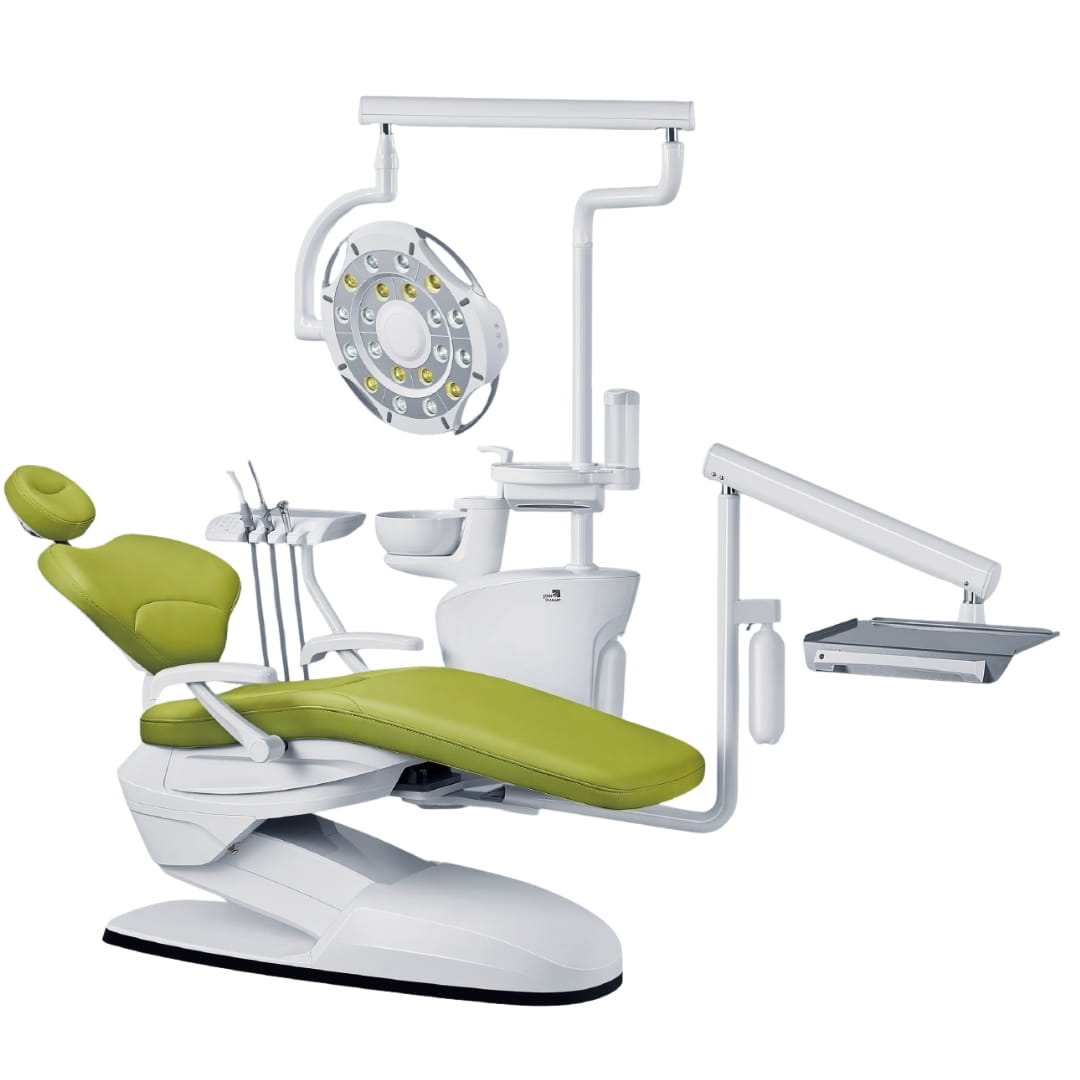

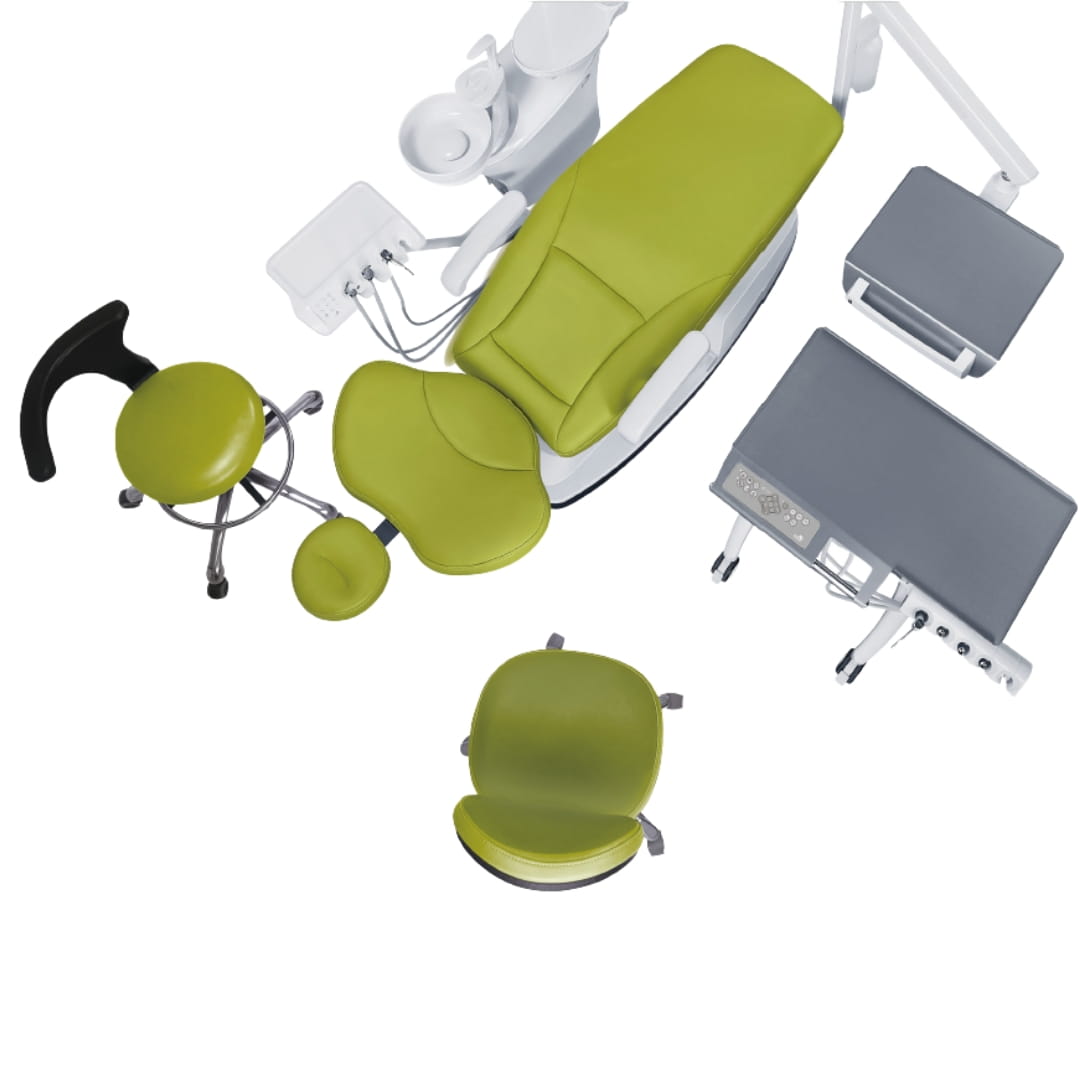

Selio S530 dental surgery unit – dental unit for implantology and oral surgery

Selio S530 is a dental unit for surgery and implantology, designed for procedures that require high stability, excellent operator access, and powerful illumination in the working field. Its configuration is clearly oriented toward implantology, oral surgery, and treatments where ergonomics and precise control matter more than in a standard unit.

The model combines a synchronized movement chair, dedicated implant LED light, articulated assistant arm, trolley-type tray, and an automatic disinfection system. The result is a more efficient workflow for the dentist and improved patient positioning during longer procedures.

Comfort and stability for surgical procedures

Selio S530 is built on a new Joinchamp frame, featuring soft start, synchronized movement, and obstacle-stop safety. The specifications include a minimum position of 390 mm, a maximum position of 760 mm, and a load capacity of over 180 kg, making it suitable for a wide range of patients and stable surgical positioning.

Additionally, the chair includes:

• Continental Leather upholstery
• ultra-thin stainless steel headrest
• double armrests made of cast aluminum
• ergonomic backrest design
• synchronized movement for smoother positioning transitions

Implant LED light – corrected specifications

The correct maximum light intensity is 60,000 lux. The Selio S530 uses a bicolor LED implant light with 20 LEDs, designed for high-intensity illumination and clear visibility during surgical procedures.

Correct lamp specifications:

• type: two-color 20-bead LED implant light
• source: 12 white LEDs + 8 yellow LEDs
• minimum intensity: <15,000 lux
• maximum intensity: 60,000 lux
• color temperature: 4000–5700 K
• color rendering index: Ra 90 ±5

This configuration is better suited for implantology than a standard lamp, as it provides strong, well-distributed light and improved visual control in the operating area.

Configuration oriented for surgery and four-handed dentistry

Selio S530 is not just a chair with strong lighting, but a system designed for surgical treatments. Key clinical features include:

• double articulated assistant arm
• detachable and rotatable ceramic cuspidor

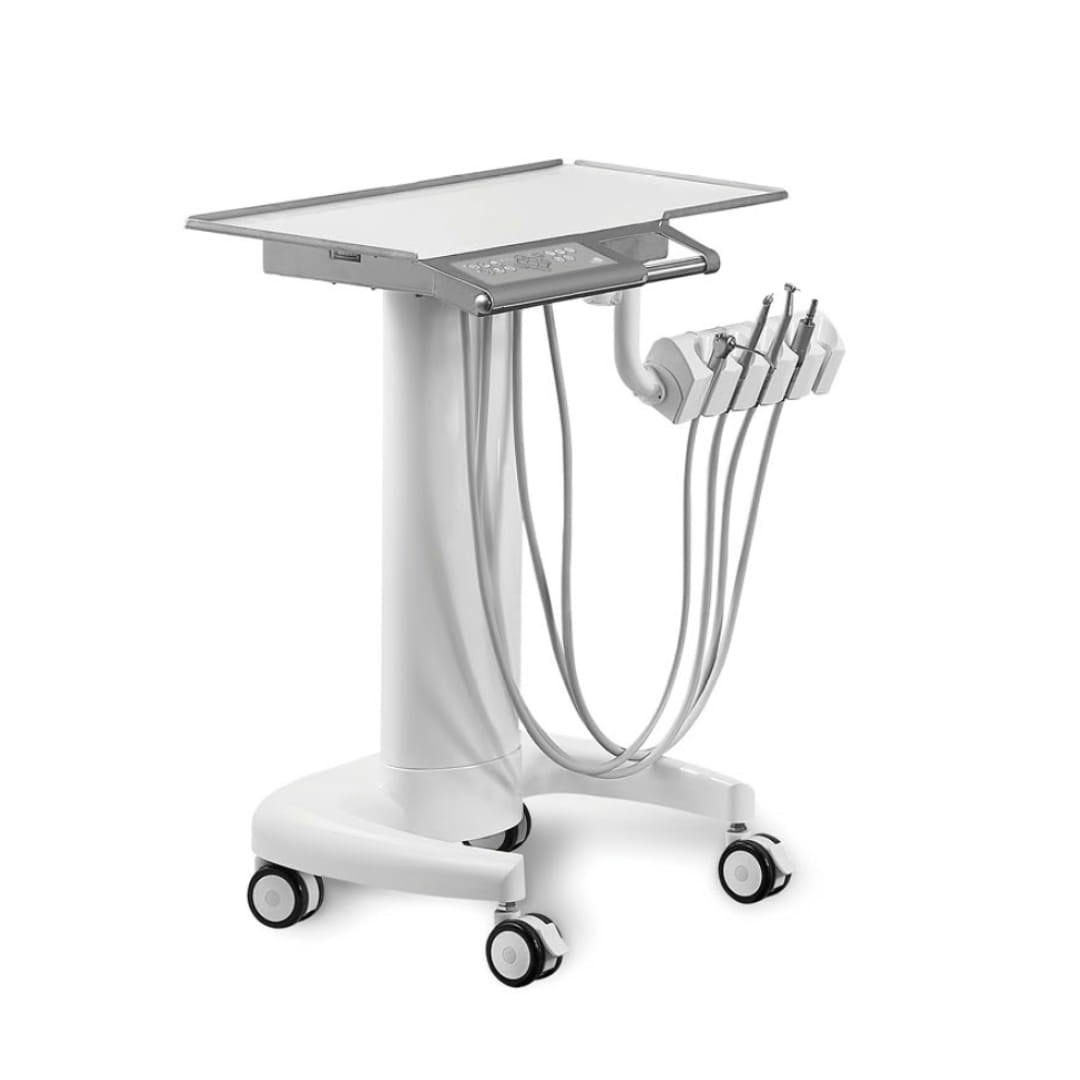

• stainless steel trolley-type dentist tray
• no-sticker touch assistant control
• multifunctional foot control
• 3-in-1 combined package for tray, tissue box, and cup holder

These elements help organize instruments and maintain a more spacious working area during interventions.

Hygiene and infection control

Selio S530 includes a one-key automatic disinfection system for cleaning internal circuits and tubing. Additionally, the model offers an optional water sterilizer, useful for maintaining water quality within the unit.

For a surgical dental unit, this is essential as it reduces maintenance time and supports modern hygiene protocols.
